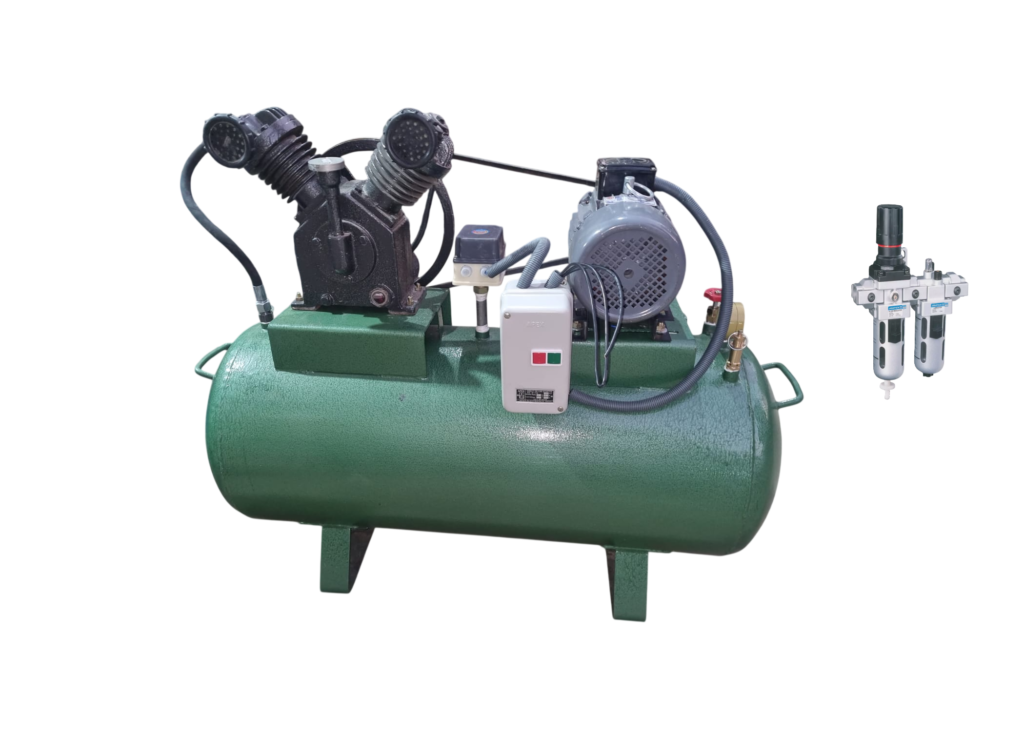

Compressor with FRL

This is an Air Compressor, and when used with an FRL Unit it becomes a complete compressed air system for pneumatic machines and tools.

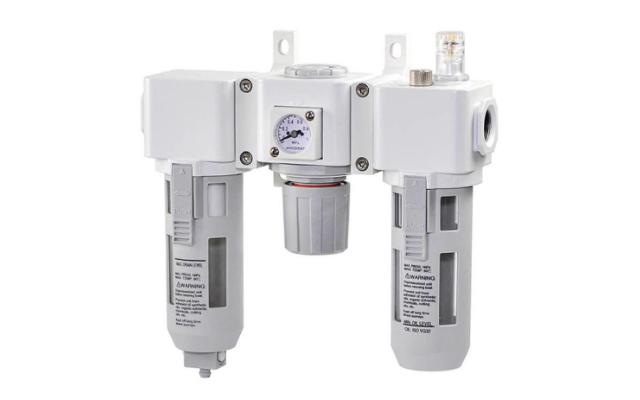

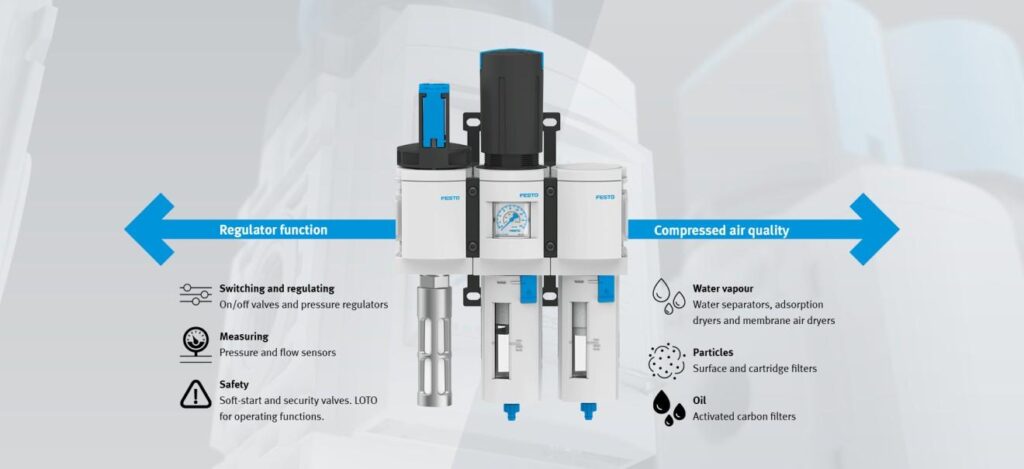

What is FRL?

FRL =

Letter	Full Form	Purpose
F	Filter	Removes dust, water, moisture
R	Regulator	Controls air pressure
L	Lubricator	Adds oil mist for pneumatic tools

---

Main Use of Compressor with FRL

The compressor generates compressed air, and the FRL prepares that air for safe and smooth use in pneumatic equipment.

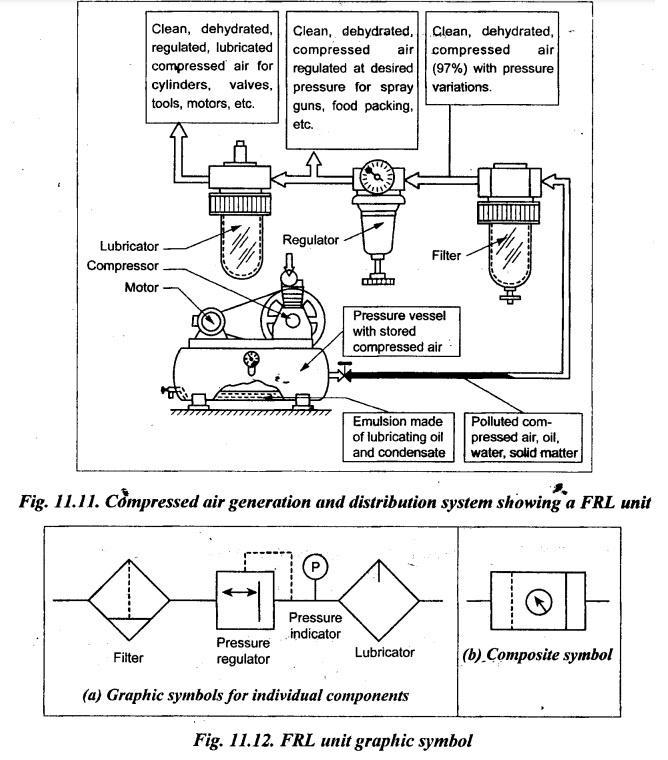

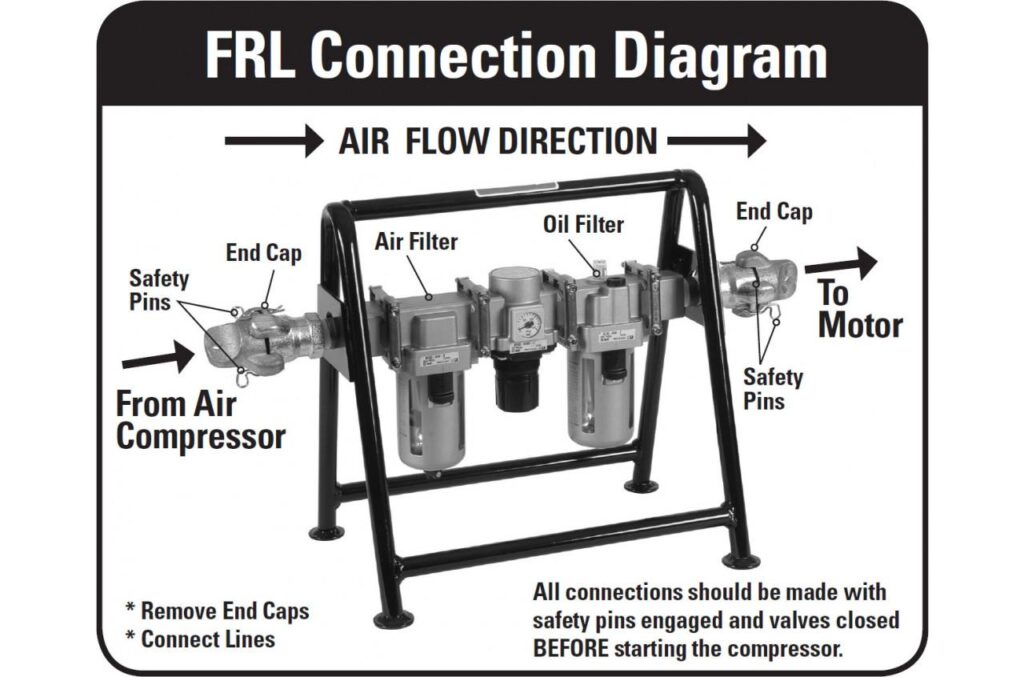

Working Process

1. Compressor creates compressed air
2. Air goes to FRL unit
3. Filter removes moisture/dust
4. Regulator sets required pressure
5. Lubricator adds oil mist
6. Clean regulated air goes to machine/tool

---

Why FRL is Important

Without FRL:

• Water enters machine
• Pneumatic cylinder gets damaged
• Valves jam
• Pressure fluctuates
• Tool life decreases

With FRL:

• Smooth operation
• Longer machine life
• Stable pressure
• Less maintenance
• Better efficiency

---

Common Applications

Industrial Machines

• Pneumatic cylinders
• Automation systems
• CNC machines
• Packaging machines
• Printing machines

Tools

• Air gun
• Impact wrench
• Spray painting gun
• Pneumatic drill
• Nail gun

Workshops

• Tyre inflation
• Cleaning dust
• Garage equipment

---

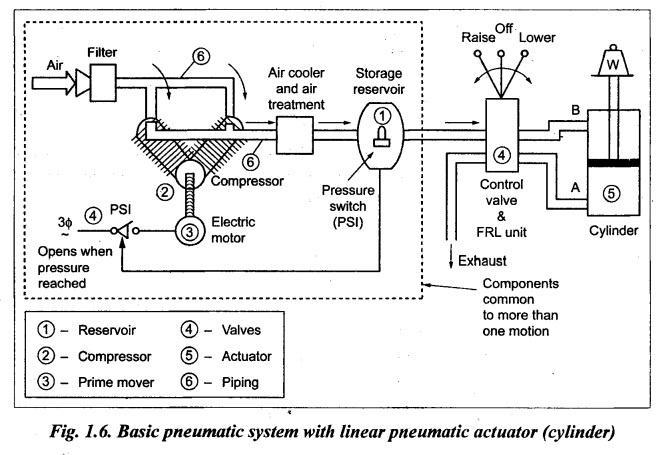

Typical Components in System

Component	Function
Air Compressor	Produces compressed air
Air Tank	Stores air
FRL Unit	Cleans & controls air
Hose Pipe	Transfers air
Pneumatic Tool	Uses compressed air

Maintenance Tips

• Drain water from tank daily
• Check lubricator oil level
• Clean filter regularly
• Do not exceed pressure limit
• Check air leakage periodically
